DTD-LUMIX

Advanced lighting regulator for two-color LEDs

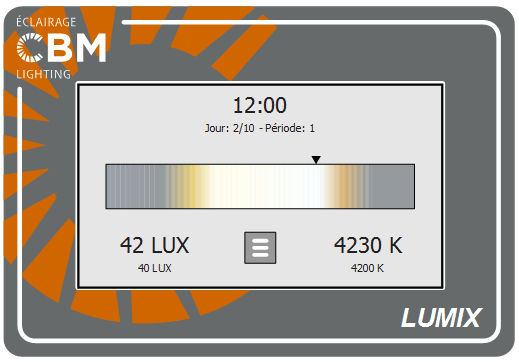

With its touch screen, the LUMIX offers you an intuitive and very simple interface. This light controller allows you to control the light intensity as well as the two-color red and white, based on lux and kelvin demand number measured by its light sensor, on a schedule that can go up to 24 periods of 24 steps. The LUMIX has 2 10 Amps lighting outputs compatible with American and European standards (120V/240V, 50Hz/60Hz) and an alarm relay.

LUMIX
1Main Power Supply: 120/240VAC @ 50/60Hz
2LUMIX basic system: 3.75W
3Each output: 10A maximum allowable
42400W for 240VAC power supply
51200W for a 120VAC power supply
6Fuse F1: 1A, 250VAC (TR5, Littelfuse # 37411000410)
7F2 & F3 Fuse: 12A, 250VAC (Fast Blow, Littelfuse # 0314012)
8Battery B1: 3V battery type CR2032
9Alarm relay: 30VDC, 1A, 100mΩ
10Light sensor: DLS2 model
11Input 0-10V maximum allowable voltage: 12VDC
12Input 0-10V impedance:> 250kΩ
13Storage temperature: -40°C to 80°C
14Operating temperature: 0°C to 40°C
15Maximum relative humidity: 80% without frost or condensation
162 years warranty (against any manufacturing defect)
