48V Series

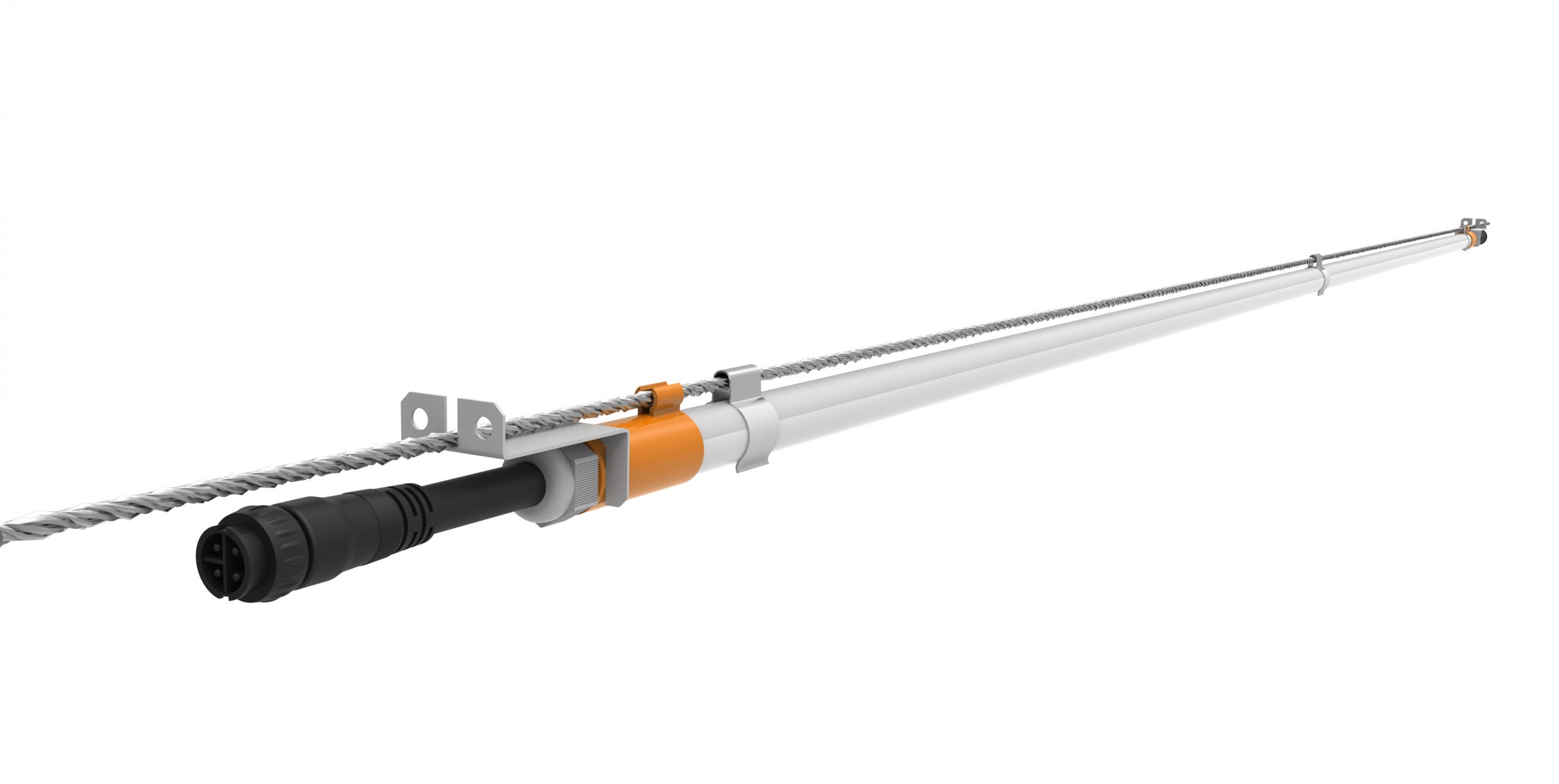

An IP67 waterproof DC48Volts LED tube designed to provide interior light for the various aviary equipment.

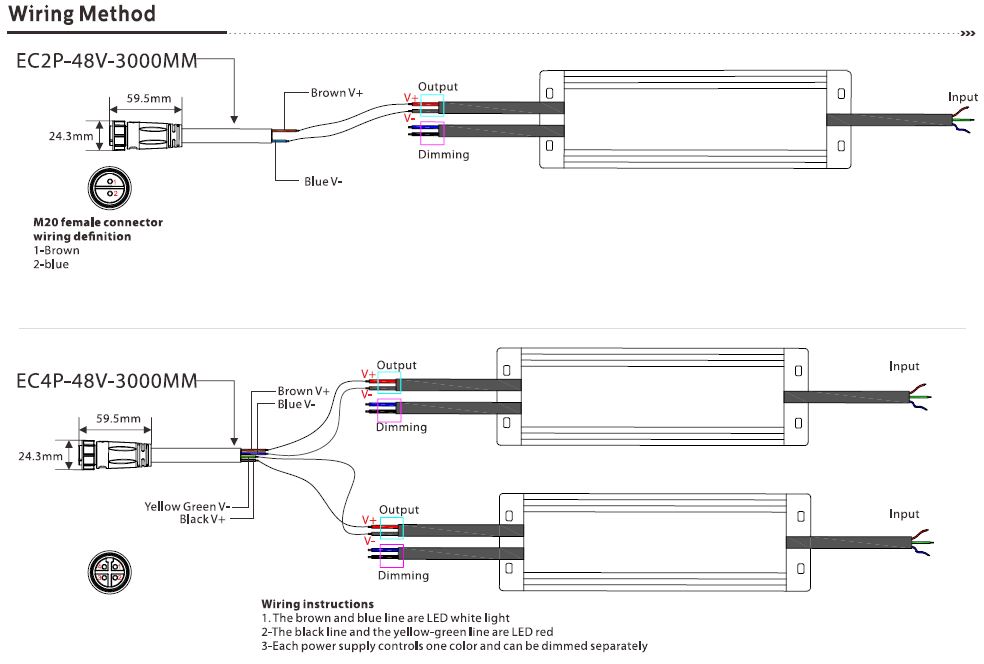

This tube has 4’’ of integrated electric cable at each end with male and female connector for quick and easy installation.
| Product code | TL6L-6W-48V-30K | |
| Designation | IP67 waterproof LED tube in 6W dimming | Special aviary system | |
| Structure | Robust molded plastic with polycarbonate optic and polymer cable gland Aluminum interior structure | |
| Connectors | Integrated 10 cm electric cable with quick connector (Ph/N) – Class II | |
| Dimensions | 6’ Ø25 mm | |
| Washable | Yes at 1500 psi / 100 bar at 1 meter | |
| LED diode brand | Samsung | |
| Consumption | 6W | |
| Light power | 720 lm | |
| Luminous efficiency | 120 lm/W Warm white – 50 lm/W Red (optical outlet) | |

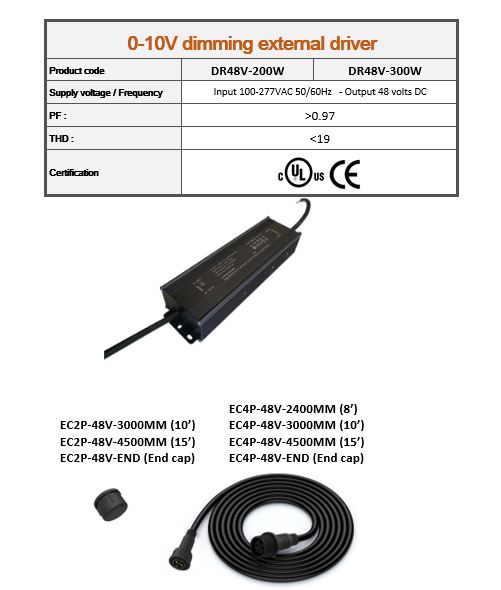

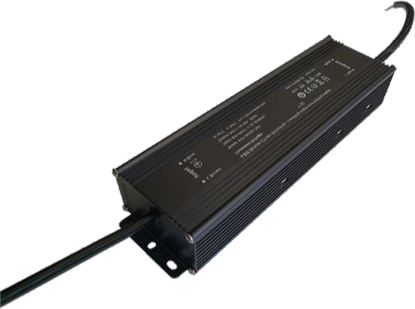

| Variation | from 0.5% to 100% on DC48V Ext. 0-10V | |
| Color T° | 3000K | |
| Color rendering index | ≥83 | |
| Optical | Clear | |
| Angle of diffusion | 150° | |
| % flicker of non-visible light | <4% | |
| IP water protection index | IP 67 | |
| IK impact protection index | IK 08 | |
| Power factor | 0.95 | |
| THD | <15% | |
| Permissible ambient T° | -20°c / +40°c | |
| Lifetime / Warranty | ≥80 000h / 5 ans | |
| Certifications |   | |
| Product code | TL8L-8W-48V-30K | |
| Designation | IP67 waterproof LED tube in 8W dimming | Special aviary system | |
| Structure | Robust molded plastic with polycarbonate optic and polymer cable gland Aluminum interior structure | |
| Connectors | Integrated 10 cm electric cable with quick connector (Ph/N) – Class II | |
| Dimensions | 8’ Ø25 mm | |
| Washable | Yes at 1500 psi / 100 bar at 1 meter | |
| LED diode brand | Samsung | |
| Consumption | 8W | |
| Light power | 960 lm | |
| Luminous efficiency | 120 lm/W Warm white – 50 lm/W Red (optical outlet) | |
| Variation | from 0.5% to 100% on DC48V Ext. 0-10V | |
| Color T° | 3000K | |
| Color rendering index | ≥83 | |
| Optical | Clear | |
| Angle of diffusion | 150° | |
| % flicker of non-visible light | <4% | |
| IP water protection index | IP 67 | |
| IK impact protection index | IK 08 | |
| Power factor | 0.95 | |
| THD | <15% | |
| Permissible ambient T° | -20°c / +40°c | |
| Lifetime / Warranty | ≥80 000h / 5 ans | |
| Certifications | | |
| Product code | TL8L-12W-48V-RW | |
| Designation | IP67 waterproof LED tube in 12W dimming | Special aviary system | |
| Structure | Robust molded plastic with polycarbonate optic and polymer cable gland Aluminum interior structure | |
| Connectors | Integrated 4″ electric cable with quick connector (Ph/N) – Class II | |
| Dimensions | 8’ Ø25 mm | |
| Washable | Yes at 1500 psi / 100 bar at 1 meter | |
| LED diode brand | Samsung | |
| Consumption | 12W (8W/3000K + 4W/Red) | |
| Light power | 1020 lm (720 lm/3000K + 300 lm/Red) | |
| Luminous efficiency | 120 lm/W Warm white – 50 lm/W Red (optical outlet) | |
| Variation | from 0.5% to 100% on DC48V Ext. 0-10V | |
| Color T° | 3000K + 1000K | |
| Color rendering index | ≥83 | |
| Optical | Clear | |
| Angle of diffusion | 150° | |
| % flicker of non-visible light | <4% | |
| IP water protection index | IP 67 | |
| IK impact protection index | IK 08 | |
| Power factor | 0.95 | |
| THD | <15% | |
| Permissible ambient T° | -20°c / +40°c | |
| Lifetime / Warranty | ≥80 000h / 5 ans | |
| Certifications | | |
