HB67/PB246W120/277V
HB67/PB246W347/480V

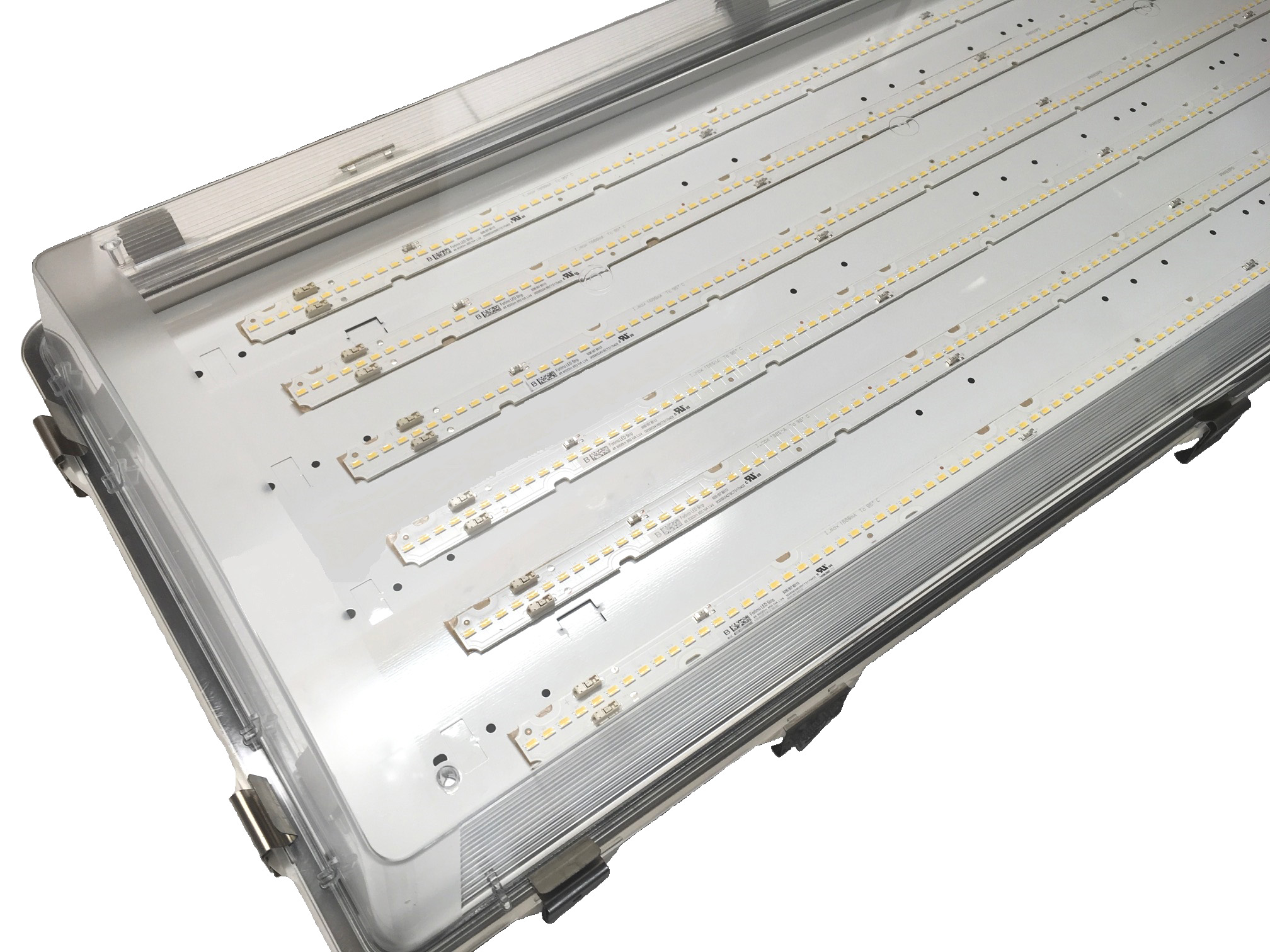

High quality 4 foot High Bay fixture.
It is IP 67 waterproof conception makes it ideal for tough environments and high ceilings in agricultural, commercial and industrial buildings.
Specifications
Specifications
| Product code | HB67/PB246W120/277V-50K | HB67/PB246W348/480V-50K |
| Designation | IP67 waterproof fixture with two (2) 46W LED boards |
| Structure | Reinforced fiberglass housing, steel gear tray, polycarbonate or acrylic diffuser, stainless steel clips |
| Dimensions | 4’ | 50 x 14 x 5 7/8 |
| Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
| LED diode brand | Philips |
| Consumption | 92W |
| Light power | 16 000 lm |
| Luminous efficiency | 173.9 lumens/watt |
| Dimmable | 0,2% to 100% |
| Color T° | 5000K |
| Color rendering index | ≥85 |
| Optical | Clear |
| Beam angle | 120° |
| % flicker of non-visible light | 4% |
| IP water protection index | IP67 |
| IK impact protection class | IK08 |
| Power factor | 0.99 |
| Total harmonic distortion (THD) | <15% |
| Maximum ambient T° | -45°c / +45°c |
| Supply voltage / Frequency | 120/277V (347/480V on demand) / 50/60Hz |
| Lifetime / Warranty | ≥ 80 000 h / 5 years |
| Certifications |  |
