TE15NR Series
IP67 waterproof LED tube with 3.5m integrated electric cable with male and female connector, ready to install.
Considerable savings in energy consumption and maintenance costs.
Applications: livestock, industry, food industry, storage, etc.

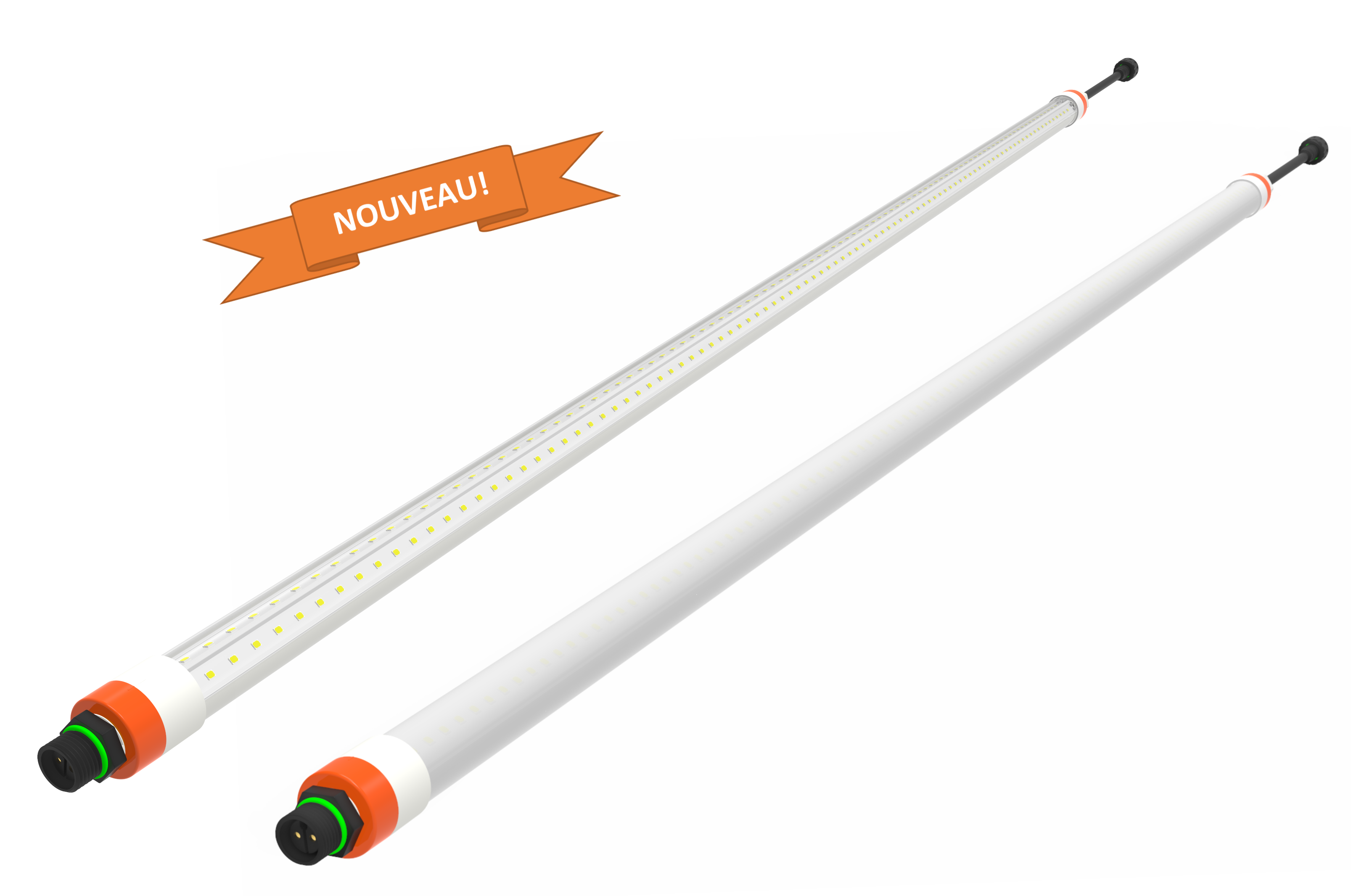

TE15NR CLEAR
TE15NR FROSTED
TE15NR CLEAR
Designation | Waterproof LED tube IP67 in 28W Dimmable ROTATING END-CAP = possibility of 360° orientation of the tube | ||
Structure | Robust molded plastic with polycarbonate optic and polymer cable gland Aluminum interior structure | ||
Fixation and connectors | Fixing supplied: open / closed eyelets Integrated 3.50 m electric cable with quick connector (Ph / N) – Class II | ||
Current flow | Built-in bypass | ||
Dimensions | Length of 1,500 mm – Ø28 mm | ||
Washable | Yes at 1500 psi / 100 bar at 1 meter | ||
LED diode brand | Samsung | ||
Consumption | 28W | ||
Light power | 2 920 lm | ||
Luminous efficiency | 140 lm/W optical output | ||
Variation | Non-dimmable | ||
Color T° | 3000K, 4000K, 6500K | ||
Color rendering index | ≥85 | ||
Optical | Clear | ||
Angle of diffusion | 220° (V-shape) | ||
% flicker of non-visible light | 4% | ||
Glare rate-Standard 12464-1 | ≤ 23 (Cloakroom, technical room, shop) | ||
IP water protection index | IP 67 | ||
IK impact protection class | IK 08 | ||
Power factor | 0.95 | ||
Total harmonic distortion (THD) | <15% | ||
Permissible ambient T° | -20°c / +40°c | ||
Supply voltage / Frequency | 175-285V / 50/60Hz | ||
Lifetime / Warranty | ≥80 000h / 5 years | ||
Certifications |
TE15NR FROSTED
Designation | Waterproof LED tube IP67 in 28W Dimmable ROTATING END-CAP = possibility of 360° orientation of the tube | ||
Structure | Robust molded plastic with polycarbonate optic and polymer cable gland Aluminum interior structure | ||
Fixation and connectors | Fixing supplied: open / closed eyelets Integrated 3.50 m electric cable with quick connector (Ph / N) – Class II | ||
Current flow | Built-in bypass | ||
Dimensions | Length of 1,500 mm – Ø28 mm | ||
Washable | Yes at 1500 psi / 100 bar at 1 meter | ||
LED diode brand | Samsung | ||
Consumption | 28W | ||
Light power | 2 920 lm | ||
Luminous efficiency | 140 lm/W optical output | ||
Variation | Non-dimmable | ||
Color T° | 3000K, 4000K, 6500K | ||
Color rendering index | ≥85 | ||
Optical | Frosted | ||
Angle of diffusion | 140° | ||
% flicker of non-visible light | 4% | ||
Glare rate-Standard 12464-1 | ≤ 23 (Cloakroom, technical room, shop) | ||
IP water protection index | IP 67 | ||
IK impact protection class | IK 08 | ||
Power factor | 0.95 | ||
Total harmonic distortion (THD) | <15% | ||
Permissible ambient T° | -20°c / +40°c | ||
Supply voltage / Frequency | 175-285V / 50/60Hz | ||
Lifetime / Warranty | ≥80 000h / 5 years | ||
Certifications |
