TE12REGRB Series

Red and White

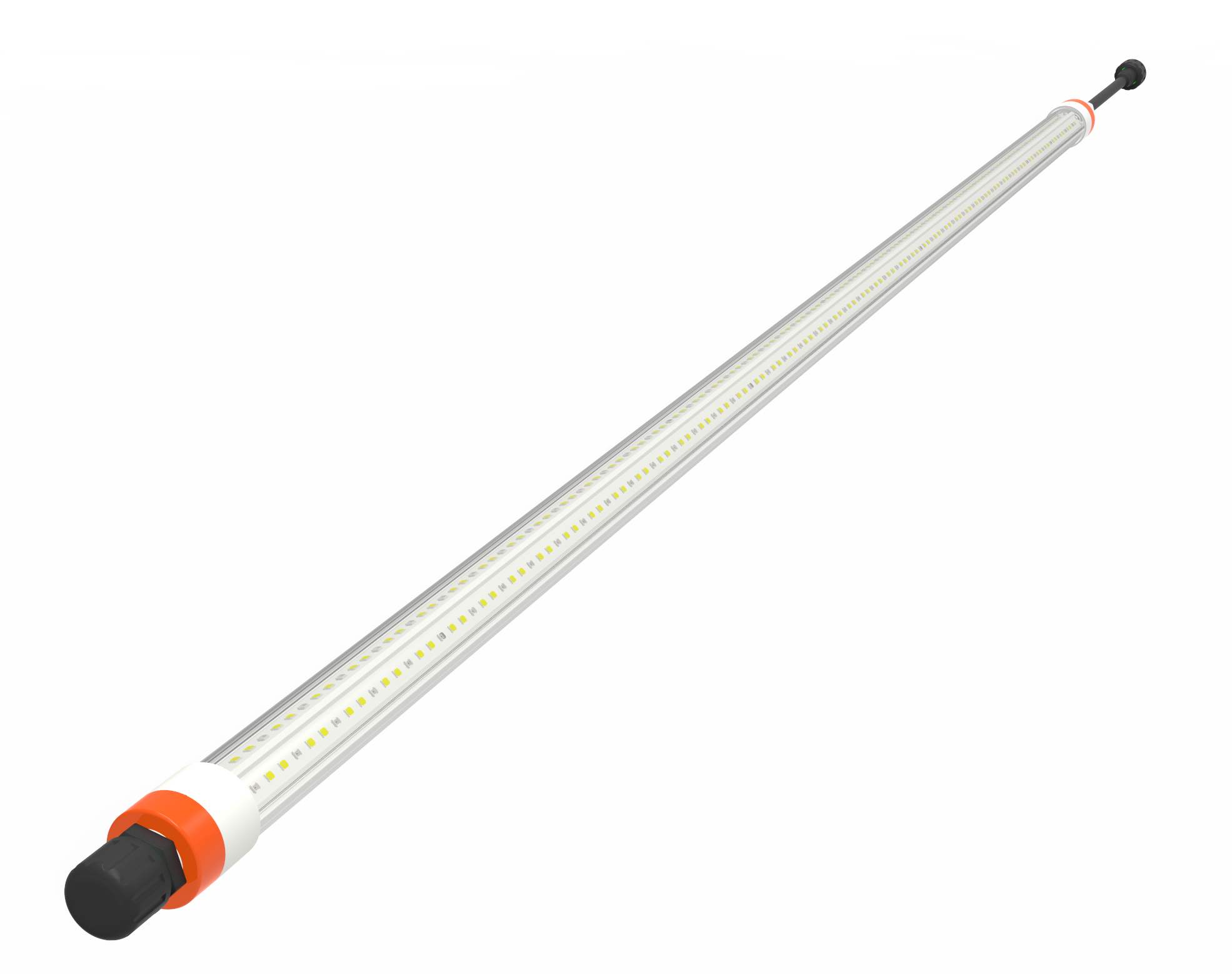

IP67 waterproof LED tube with 3.5m integrated electric cable with male and female connector, ready to install.

Considerable savings in energy consumption and maintenance costs.

Applications: livestock, industry, food industry, storage, etc.

DesignationWaterproof LED tube IP67 in 23W Dimmable
ROTATING END-CAP = possibility of 360° orientation of the tube
Structure

Robust molded plastic with polycarbonate optic and polymer cable gland
Aluminum interior structure

Fixation and connectorsFixing supplied: open / closed eyelets
Integrated 3.50 m electric cable with quick connector (Ph / N) – Class II
DimensionsLength of 1,200 mm – Ø28 mm
Maximum wash pressureYes at 1500 psi / 100 bar at 1 meter
LED diode brandSamsung
Consumption23W
Light power 2 530 lm
Luminous efficiency110 lm/W optical output
DimmableIndependent Red and 6500K Diodes
Double dimmable from 0.2% to 100% on 230V or via 0-10V signal
Color T°1500K to 6500K Red and White
Color rendering index≥85
OpticalClear
Beam angle220°
% flicker of non-visible light4%
IP water protection indexIP 67
IK impact protection classIK 08
Maximum ambient T°-20°c / +40°c
Supply voltage / Frequency175-285V / 50Hz
Lifetime / Warranty≥80 000h / 5 years
Certifications
