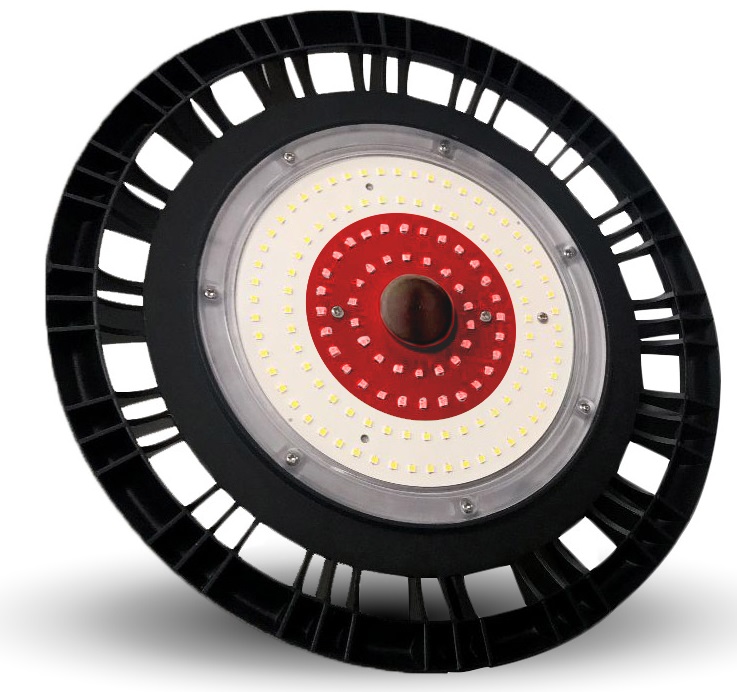

SRD Series - Red night light
A round LED pendant light adjustable 0-10V allowing
a choice of 3 wattages: 100W, 150W or 200W!
In 5000K (White of the Day) also including
a 20W Red Night Light.
It will allow you to make considerable savings in both energy consumption and maintenance costs.
SRD200W50KC-R
Connection
SRD200W50KC-R
| Designation | Round adjustable LED pendant light with Red Night Light | ||
| Structure | Die-cast aluminum housing with high efficiency heat dissipation. Included: 1 m of electrical cable output + fixing eyelet. | ||
| Option | SRDSUPPORT200W wall mount | ||
| Dimension | 340mm x 150mm (3.4 kgs) | ||
| Washable | With pressure up to 105 Bar / With steam at a maximum temperature of 93°C | ||
| LED diode brand | 2835/3030 – Lm80 | ||
| Consumption | 100W / 150W / 200W + 20W red (switch) | ||
| Light power | 16 000lm / 24 000 lm / 32 000lm | ||
| Luminous efficiency | 160 lm/W | ||
| Dimmable | 0-10V | ||
| Color T° | 5000K + Red 630nm (in the center of the suspension) | ||
| Color rendering index | ≥80 | ||
| Optical | Clear | ||
| Beam angle | 120° | ||
| % flicker of non-visible light | 4% | ||
| IP water protection index | IP 66 | ||
| IK impact protection class | IK 08 | ||
| Power factor | >0.9 | ||
| Total harmonic distortion (THD) | <20% | ||
| Maximum ambient T° | -40°c / +45°c | ||
| Supply voltage / Frequency | 120/240V / 50/60Hz | ||
| Warranty | 7 years | ||
| Certification |  | ||
Connection
Diagram of the different electrical cables for connection
