DC48V LANTERNS
IP67 lantern adjustable quick connection (in gland plugs) of the electrical wiring of free length!
Building Renovation or New:
The SOLO lantern is made for installation in a junction box.
The LINEAR lantern is made for installation in series.
9W
15W
15W RB
9W
| Product code | Linear: SLL9W48V or Solo: SLS9W48V |
| Designation | IP67 waterproof LED lamp | Light lamp with free electric cable |
| Structure | Lexan (specific polycarbonate) |
| LED diode brand | Samsung |
| Consumption | 9W |
| Light power | 1080 lm |
| Luminous efficiency | 120 lm/W |
| Dimmable | from 0.5% to 100% in DC48V via 0-10V signal |

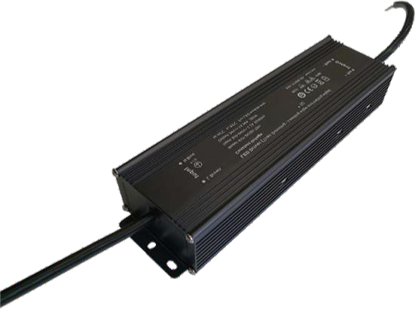

| Accessory not included | External 0-10V driver: FDR48V-200W or FDR48V-300W |
| Units per Driver Ext. | 20 units/200W | 30 units/300W |
| Color T° | 2700K or 4000K |
| Color rendering index | ≥83 |
| Beam angle | 145° |
| % flicker of non-visible light | <4% |
| IP water protection index | IP 67 |
| IK impact protection class | IK 08 |
| Power factor | 0.97 |
| Total harmonic distortion (THD) | <19% |
| Maximum ambient T° | -20°c / +40°c |
| Supply voltage / Frequency | DC48V / 50Hz |
| Lifetime / Warranty | ≥ 50 000 h / 5 years |
| Certification |  |
15W
| Product code | Linear: SLL15W48V or Solo: SLS15W48V |
| Designation | IP67 waterproof LED lamp | Light lamp with free electric cable |
| Structure | Lexan (specific polycarbonate) |
| LED diode brand | Samsung |
| Consumption | 15W |
| Light power | 1800 lm |
| Luminous efficiency | 120 lm/W |
| Dimmable | from 0.5% to 100% in DC48V via 0-10V signal |
| Accessory not included | External 0-10V driver: FDR48V-200W or FDR48V-300W |
| Units per Driver Ext. | 20 units/200W | 30 units/300W |
| Color T° | 2700K or 4000K |
| Color rendering index | ≥83 |
| Beam angle | 145° |
| % flicker of non-visible light | <4% |
| IP water protection index | IP 67 |
| IK impact protection class | IK 08 |
| Power factor | 0.97 |
| Total harmonic distortion (THD) | <19% |
| Maximum ambient T° | -20°c / +40°c |
| Supply voltage / Frequency | DC48V / 50Hz |
| Lifetime / Warranty | ≥ 50 000 h / 5 years |
| Certification | |
15W RB
| Product code | Linear: SLL15W48V or Solo: SLS15W48V |
| Designation | IP67 waterproof LED lamp | Light lamp with free electric cable |
| Structure | Lexan (specific polycarbonate) |
| LED diode brand | Samsung |
| Consumption | 15W |
| Light power | 1475 lm |
| Luminous efficiency | 120 lm/W |
| Dimmable | from 0.5% to 100% in DC48V via 0-10V signal |
| Accessory not included | External 0-10V driver: FDR48V-200W or FDR48V-300W |
| Units per Driver Ext. | 20 units/200W | 30 units/300W |
| Color T° | 2700K (10W) + Red (5W) |
| Color rendering index | ≥83 |
| Beam angle | 145° |
| % flicker of non-visible light | <4% |
| IP water protection index | IP 67 |
| IK impact protection class | IK 08 |
| Power factor | 0.97 |
| Total harmonic distortion (THD) | <19% |
| Maximum ambient T° | -20°c / +40°c |
| Supply voltage / Frequency | DC48V / 50Hz |
| Lifetime / Warranty | ≥ 50 000 h / 5 years |
| Certification | |
