CBM dimmer Series
Our 500W and 1200W 0-10V slave dimmers for electrical cabinets are specially designed for dimming CBM 230-240V LED lamps, adjustable from 0.2% to 100% without flashing/flickering.
CBM-CB-500W
CBM-CB-1200W
CBM-CB-500W
| Designation | 500W dimmer in 0-10V for electrical cabinet | |
| Consumption/Zone | 500W – 2.5A / 1 zone | |
| Maximum quantité of tubes installed | 25 tubes 18W dimming | |
| Mode | Slave | |
| Regulation | from 0.2% to 100% without flashing with (CBM luminaire) | |
| Function | Via 0-10V | |
| Dimensions | 106.2mm x 90mm x 48.4mm | |
| Water-Shock Protection | IP20 – IK08 | |
| Guarantee | 2 years warranty (against any manufacturing defect) | |

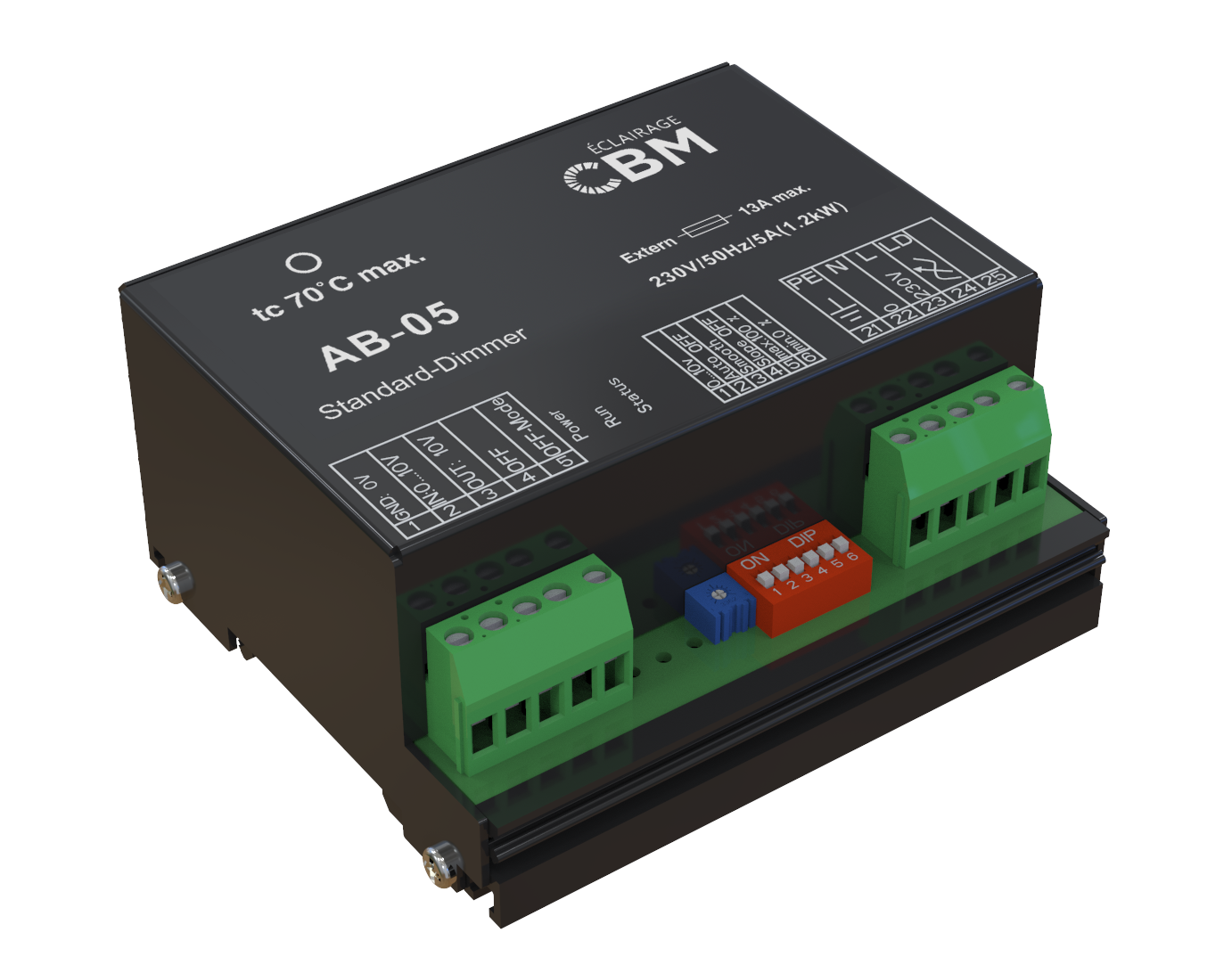

CBM-CB-1200W
| Designation | 1200W dimmer in 0-10V for electrical cabinet | |
| Consumption/Zone | 1200W – 5A / 1 zone | |
| Maximum quantité of tubes installed | 55 tubes 18W dimming | |
| Mode | Slave | |
| Regulation | from 0.2% to 100% without flashing with (CBM luminaire) | |
| Function | Via 0-10V | |
| Dimensions | 106.2mm x 90mm x 48.4mm | |
| Water-Shock Protection | IP20 – IK08 | |
| Guarantee | 2 years warranty (against any manufacturing defect) | |
