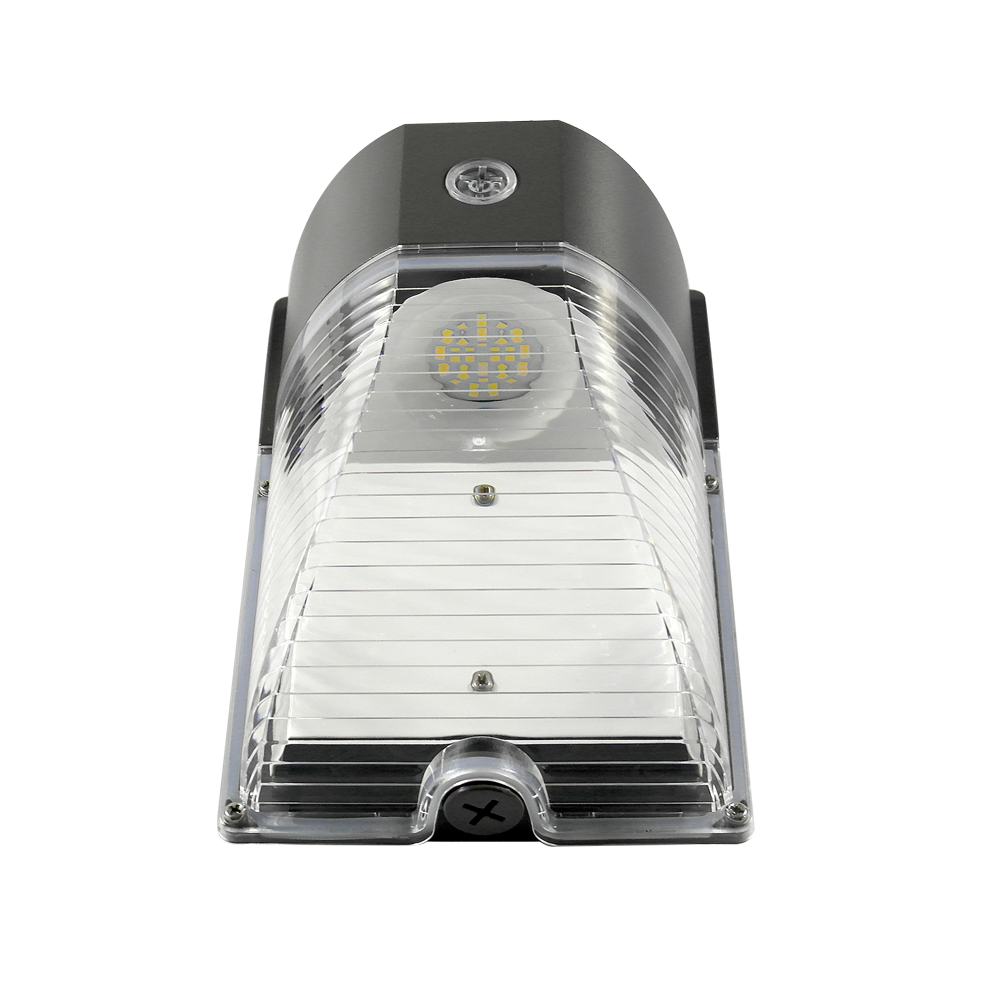

Wall Pack Series
This wall pack fixture is superior and requires less energy than traditional HID replacements and offers a highly efficient and cost-effective approach to commercial and industrial lighting solutions.
Our Wall Pack LED fixtures offer multiple levels of product customization, ranging from color, power, and clarity. Photocell included.
The unique fixutre offers quick and easy installation for construction and renovation projects. It will allow you to make considerable savings both in energy consumption and maintenance costs.
18W
26W
60W
80W
100W
120W
18W
Product code | LWP18W120/277V |
Designation | Wall light for indoor and outdoor warehouses, schools, hospitals and many other general workspaces, easy installation requiring little maintenance. This fixture is intended to replace traditional outdoor spotlights and projectors such as fluorescent or HID wall lights. Photocell included. |
Structure | Aluminum and PC |
Dimensions | 360mm x 250mm x 240mm |
LED diode | SMD3030 |
Consumption | 18W |
Light power | 1 800 lm |
Luminous efficiency | 100 lumens/watt |
Dimmable | Non-dimmable |
Color T° | 5000K |
Color rendering index | ≥70 |
Optical | Clear, Frosted |
Beam angle | 100° |
IP water protection index | IP 65 |
IK impact protection class | IK 06 |
Power factor | ≥ 0.9 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -20°c / +50°c |
Supply voltage / Frequency | 120/277V, 100/347V, 480V / 50/60Hz |
Lifetime / Warranty | ≥ 80 000 h / 5 years |
Certifications |
26W
Product code | LWP26W120/277V |
Designation | Wall light for indoor and outdoor warehouses, schools, hospitals and many other general workspaces, easy installation requiring little maintenance. This fixture is intended to replace traditional outdoor spotlights and projectors such as fluorescent or HID wall lights. Photocell included. |
Structure | Aluminum and PC |
Dimensions | 360mm x 250mm x 240mm |
LED diode | SMD3030 |
Consumption | 26W |
Light power | 2 600 lm |
Luminous efficiency | 100 lumens/watt |
Dimmable | Non-dimmable |
Color T° | 5000K |
Color rendering index | ≥70 |
Optical | Clear, Frosted |
Beam angle | 100° |
IP water protection index | IP 65 |
IK impact protection class | IK 06 |
Power factor | ≥ 0.9 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -20°c / +50°c |
Supply voltage / Frequency | 120/277V, 100/347V, 480V / 50/60Hz |
Lifetime / Warranty | ≥ 80 000 h / 5 years |
Certifications |
60W
Product code | LWP60W120/277V |
Designation | Wall light for indoor and outdoor warehouses, schools, hospitals and many other general workspaces, easy installation requiring little maintenance. This fixture is intended to replace traditional outdoor spotlights and projectors such as fluorescent or HID wall lights. Photocell included. |
Structure | Aluminum and PC |
Dimensions | 360mm x 250mm x 240mm |
LED diode | SMD3030 |
Consumption | 60W |
Light power | 7 200 lm |
Luminous efficiency | 120 lumens/watt |
Dimmable | Non-dimmable |
Color T° | 5000K |
Color rendering index | ≥70 |
Optical | Clear, Frosted |
Beam angle | 120° |
IP water protection index | IP 65 |
IK impact protection class | IK 06 |
Power factor | ≥ 0.9 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -20°c / +50°c |
Supply voltage / Frequency | 120/277V, 100/347V, 480V / 50/60Hz |
Lifetime / Warranty | ≥ 80 000 h / 5 years |
Certifications |
80W
Product code | LWP80W120/277V |
Designation | Wall light for indoor and outdoor warehouses, schools, hospitals and many other general workspaces, easy installation requiring little maintenance. This fixture is intended to replace traditional outdoor spotlights and projectors such as fluorescent or HID wall lights. Photocell included. |
Structure | Aluminum and PC |
Dimensions | 360mm x 250mm x 240mm |
LED diode | SMD3030 |
Consumption | 80W |
Light power | 9 600 lm |
Luminous efficiency | 120 lumens/watt |
Dimmable | Non-dimmable |
Color T° | 5000K |
Color rendering index | ≥70 |
Optical | Clear, Frosted |
Beam angle | 120° |
IP water protection index | IP 65 |
IK impact protection class | IK 06 |
Power factor | ≥ 0.9 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -20°c / +50°c |
Supply voltage / Frequency | 120/277V, 100/347V, 480V / 50/60Hz |
Lifetime / Warranty | ≥ 80 000 h / 5 years |
Certifications |
100W
Product code | LWP100W120/277V |
Designation | Wall light for indoor and outdoor warehouses, schools, hospitals and many other general workspaces, easy installation requiring little maintenance. This fixture is intended to replace traditional outdoor spotlights and projectors such as fluorescent or HID wall lights. Photocell included. |
Structure | Aluminum and PC |
Dimensions | 360mm x 250mm x 240mm |
LED diode | SMD3030 |
Consumption | 100W |
Light power | 12 000 lm |
Luminous efficiency | 120 lumens/watt |
Dimmable | Non-dimmable |
Color T° | 5000K |
Color rendering index | ≥70 |
Optical | Clear, Frosted |
Beam angle | 120° |
IP water protection index | IP 65 |
IK impact protection class | IK 06 |
Power factor | ≥ 0.9 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -20°c / +50°c |
Supply voltage / Frequency | 120/277V, 100/347V, 480V / 50/60Hz |
Lifetime / Warranty | ≥ 80 000 h / 5 years |
Certifications |
120W
Product code | LWP120W120/277V |
Designation | Wall light for indoor and outdoor warehouses, schools, hospitals and many other general workspaces, easy installation requiring little maintenance. This fixture is intended to replace traditional outdoor spotlights and projectors such as fluorescent or HID wall lights. Photocell included. |
Structure | Aluminum and PC |
Dimensions | 360mm x 250mm x 240mm |
LED diode | SMD3030 |
Consumption | 120W |
Light power | 14 400 lm |
Luminous efficiency | 120 lumens/watt |
Dimmable | Non-dimmable |
Color T° | 5000K |
Color rendering index | ≥70 |
Optical | Clear, Frosted |
Beam angle | 120° |
IP water protection index | IP 65 |
IK impact protection class | IK 06 |
Power factor | ≥ 0.9 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -20°c / +50°c |
Supply voltage / Frequency | 120/277V, 100/347V, 480V / 50/60Hz |
Lifetime / Warranty | ≥ 80 000 h / 5 years |
Certifications |
