TL Hanging -

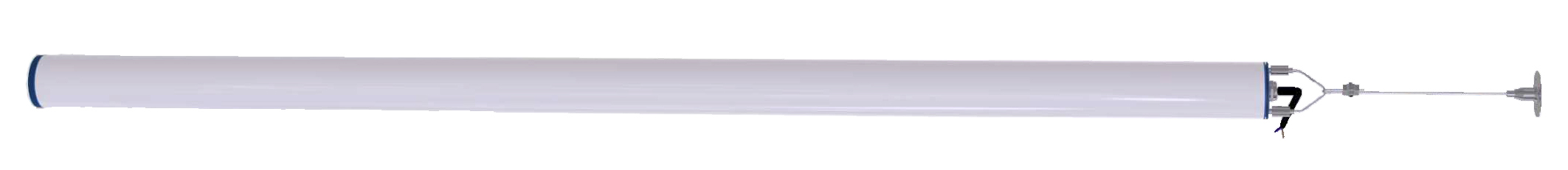

Hanging LED tube with its integrated driver ideal for applications in poultry houses.

It will allow you to make considerable savings both in energy consumption and maintenance costs.

It replaces any luminaire with bulb or any fluorescent tube.

30W | 4'

30W | 6'

30W | FS

45W | RW

30W | 4'

30W | 6'

30W | FS

45W | RW

Product code	TL4H360-85/145V \| TL4H360175/285V
Designation	Waterproof LED Tube 4′ – 30 Watt double V-shape
Structure	Robust molded plastic with polycarbonate lens and polymer cable gland
Fixation and connectors	Eyelet and INOX fixing with 100cm 2-wire (Phase and Neutral) wire – Class II
Dimensions	4’ \| available 5’ and 6’ on demand
Washable	with up to 1500 PSI steam pressure at a temperature up to 200° F
LED diode brand	Samsung
Consumption	30W
Light power	3 900 lm
Luminous efficiency	130 lm/W
Dimmable	0.2% to 100%
Color T°	3000K
Color rendering index	≥80
Optical	Frosted
Beam angle	360°
% flicker of non-visible light	<4%
IP water protection index	IP 66
IK impact protection class	IK 08
Power factor	0.95
Total harmonic distortion (THD)	<15%
Maximum ambient T°	-20°c / +50°c
Supply voltage / Frequency	85/145V (175/285V on demand) / 50/60Hz
Lifetime / Warranty	≥80 000h / 5 years
Certifications

Product code	TL6H30W85/145V \| TL6H30W175/285V
Designation	Waterproof LED Tube 6′ – 30 Watt double V-shape
Structure	Robust molded plastic with polycarbonate lens and polymer cable gland
Fixation and connectors	Eyelet and INOX fixing with 100cm 2-wire (Phase and Neutral) wire – Class II
Dimensions	6’ \| available 8’ and 10’ on demand
Washable	with up to 1500 PSI steam pressure at a temperature up to 200° F
LED diode brand	Samsung
Consumption	30W
Light power	3 600 lm
Luminous efficiency	120 lm/W
Dimmable	0.2% to 100%
Color T°	3000K
Color rendering index	≥83
Optical	Clear, Frosted
Beam angle	360°
% flicker of non-visible light	<4%
IP water protection index	IP 67 (NEMA 4X)
IK impact protection class	IK 08
Power factor	0.95
Total harmonic distortion (THD)	<15%
Maximum ambient T°	-20°c / +50°c
Supply voltage / Frequency	85/145V (175/285V on demand) / 50/60Hz
Lifetime / Warranty	≥80 000h / 5 years
Certifications

Product code	TL4H360-85/145V-FS \| TL4H360-175/285V-FS
Designation	Waterproof LED Tube 4′ – 30 Watt double V-shape
Structure	Robust molded plastic with polycarbonate lens and polymer cable gland
Fixation and connectors	Eyelet and INOX fixing with 100cm 2-wire (Phase and Neutral) wire – Class II
Dimensions	4’ \| available 5’ and 6’ on demand
Washable	with up to 1500 PSI steam pressure at a temperature up to 200° F
LED diode brand	Samsung
Consumption	30W
Light power	3 900 lm
Luminous efficiency	130 lm / W
Dimmable	0.2% to 100%
Color T°	Full spectrum
Color rendering index	≥80
Optical	Frosted
Beam angle	360°
% flicker of non-visible light	<4%
IP water protection index	IP 66
IK impact protection class	IK 08
Power factor	0.95
Total harmonic distortion (THD)	<15%
Maximum ambient T°	-20°c / +50°c
Supply voltage / Frequency	85/145V (175/285V on demand) / 50/60Hz
Lifetime / Warranty	≥80 000h / 5 years
Certifications

Product code	TL6HT45W85/145V-R/W \| TL6HT45W175/285V-R/W
Designation	Red and white IP67 waterproof LED tube, double V-side
Structure	Robust molded plastic with polycarbonate lens and polymer cable gland
Fixation and connectors	Eyelet and INOX fixing with 100cm 2-wire (Phase and Neutral) wire – Class II
Dimensions	6’ \| available 8’ and 10’ on demand
Washable	with up to 1500 PSI steam pressure at a temperature up to 200° F
LED diode brand	Samsung
Consumption	45W (30W White / 15W Red)
Light power	3 900 lm / White
Luminous efficiency	130 lm/W / White
Dimmable	0.2% to 100%
Color T°	1500°K to 5000°K (red and white)
Color rendering index	≥83
Optical	Clear
Beam angle	360°
% flicker of non-visible light	<4%
IP water protection index	IP 67
IK impact protection class	IK 08
Power factor	0.95
Total harmonic distortion (THD)	<15%
Maximum ambient T°	-20°c / +50°c
Supply voltage / Frequency	85/145V (175/285V on demand) / 50/60Hz
Lifetime / Warranty	≥80 000h / 5 years
Certifications
