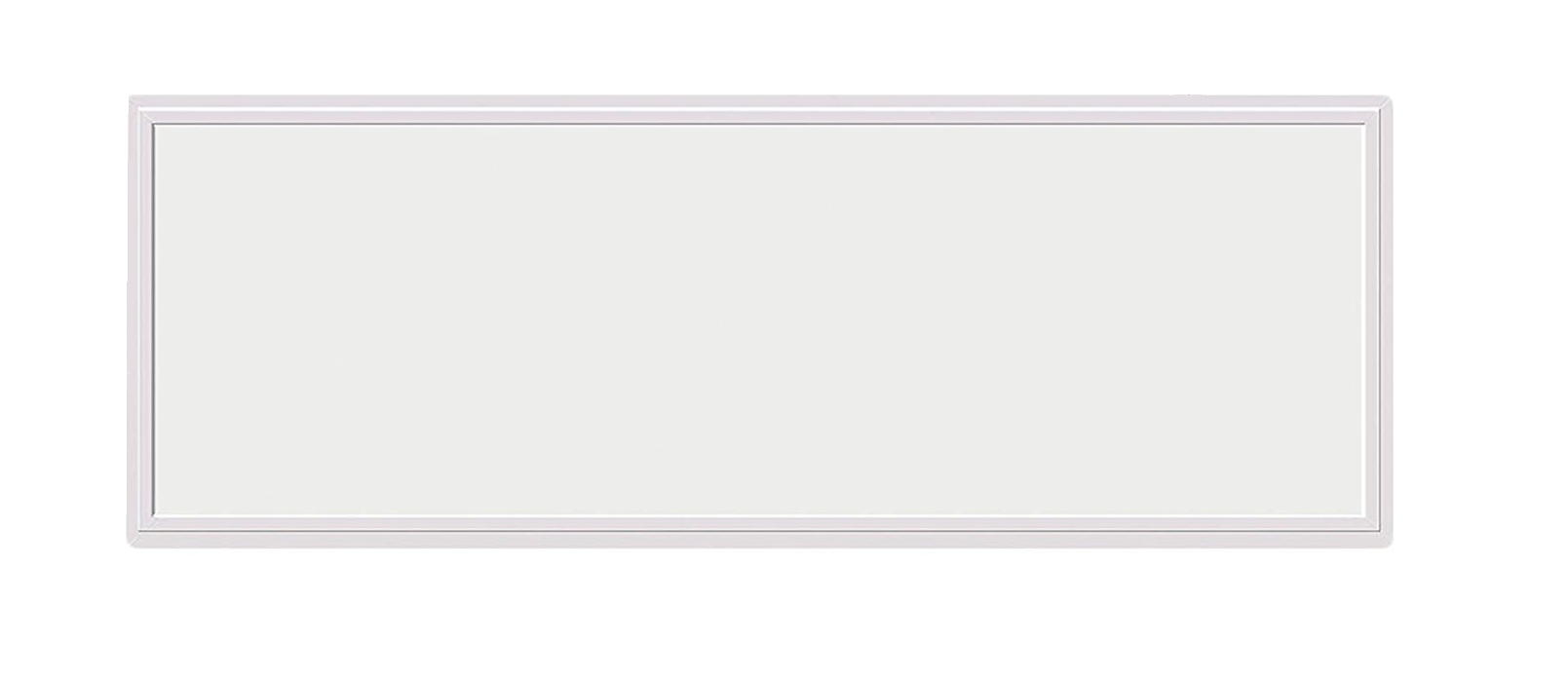

Panel Light Series
Having a clean and elegant design, this LED panel light with a unique internal driver gives a very uniform light output with no dark areas thanks to the diffuser.
1x4
2x2
2x4
1x4
Product code | PL14-CCT-100/347V | |
Designation | Dimmable LED light panel, Fast start, no flickering and noise Tri-Wattage Switch – CCT Switch – Back-lit | |
Dimensions | 1’ x 4’ | 300*1212*30 mm | |
LED diode brand | Samsung | |
Consumption | 25W / 36W / 40W – CCT Switch | |
Light power | 3 125 lm to 5 000 lm | |
Luminous efficiency | 125 lm/W | |
Dimmable | 0.2% to 100% | |
Color T° | 3500K / 4000K / 5000K, CCT Switch | |
Color rendering index | ≥80 | |
Optical | White | |
Beam angle | 110° | |
% flicker of non-visible light | <4% | |
IP water protection index | IP 66 | |
IK impact protection class | IK 08 | |
Power factor | 0.95 | |
Total harmonic distortion (THD) | <15% | |
Supply voltage / Frequency | 100/347V / 50/60Hz | |
Warranty | 5 years | |
Certifications |
2x2
Product code | PL22-CCT-100/347V | |
Designation | Dimmable LED light panel, Fast start, no flickering and noise CCT Switch – Back-lit |
|
Dimensions | 2’ x 2’ | 603*603*30 mm | |
LED diode brand | Samsung | |
Consumption | 50W | |
Light power | 6 250 lm | |
Luminous efficiency | 125 lm/W | |
Dimmable | 0.2% to 100% | |
Color T° | 2700K / 4000K / 6500K, CCT Switch | |
Color rendering index | ≥80 | |
Optical | White | |
Beam angle | 120° | |
% flicker of non-visible light | <4% | |
IP water protection index | IP 66 | |
IK impact protection class | IK 08 | |
Power factor | 0.95 | |
Total harmonic distortion (THD) | <15% | |
Supply voltage / Frequency | 100/347V / 50/60Hz | |
Warranty | 5 years | |
Certifications |
2x4
Product code | PL24-CCT-100/347V | |
Designation | Dimmable LED light panel, Fast start, no flickering and noise CCT Switch – Back-lit | |
Dimensions | 2’ x 4’ | 603*1212*30 mm | |
LED diode brand | Samsung | |
Consumption | 50 W | |
Light power | 6 250 lm | |
Luminous efficiency | 125 lm/W | |
Dimmable | 0.2% to 100% | |
Color T° | 2700K / 4000K / 6500K, CCT Switch | |
Color rendering index | ≥80 | |
Optical | White | |
Beam angle | 120° | |
% flicker of non-visible light | <4% | |
IP water protection index | IP 66 | |
IK impact protection class | IK 08 | |
Power factor | 0.95 | |
Total harmonic distortion (THD) | <15% | |
Supply voltage / Frequency | 100/347V / 50/60Hz | |
Warranty | 5 years | |
Certifications |
