Orbis
Architectural Flood and Spot Luminaire
The Orbis ceiling light a versatile choice for various lighting applications. It offers flexibility in controlling brightness and color temperature, which can help create the desired ambiance in your space.
ORBD20WACCT
ORBD20WACCT
| Designation | Orbis ceiling light dustproof and waterproof, compatible with OB15/10 octagonal housing |

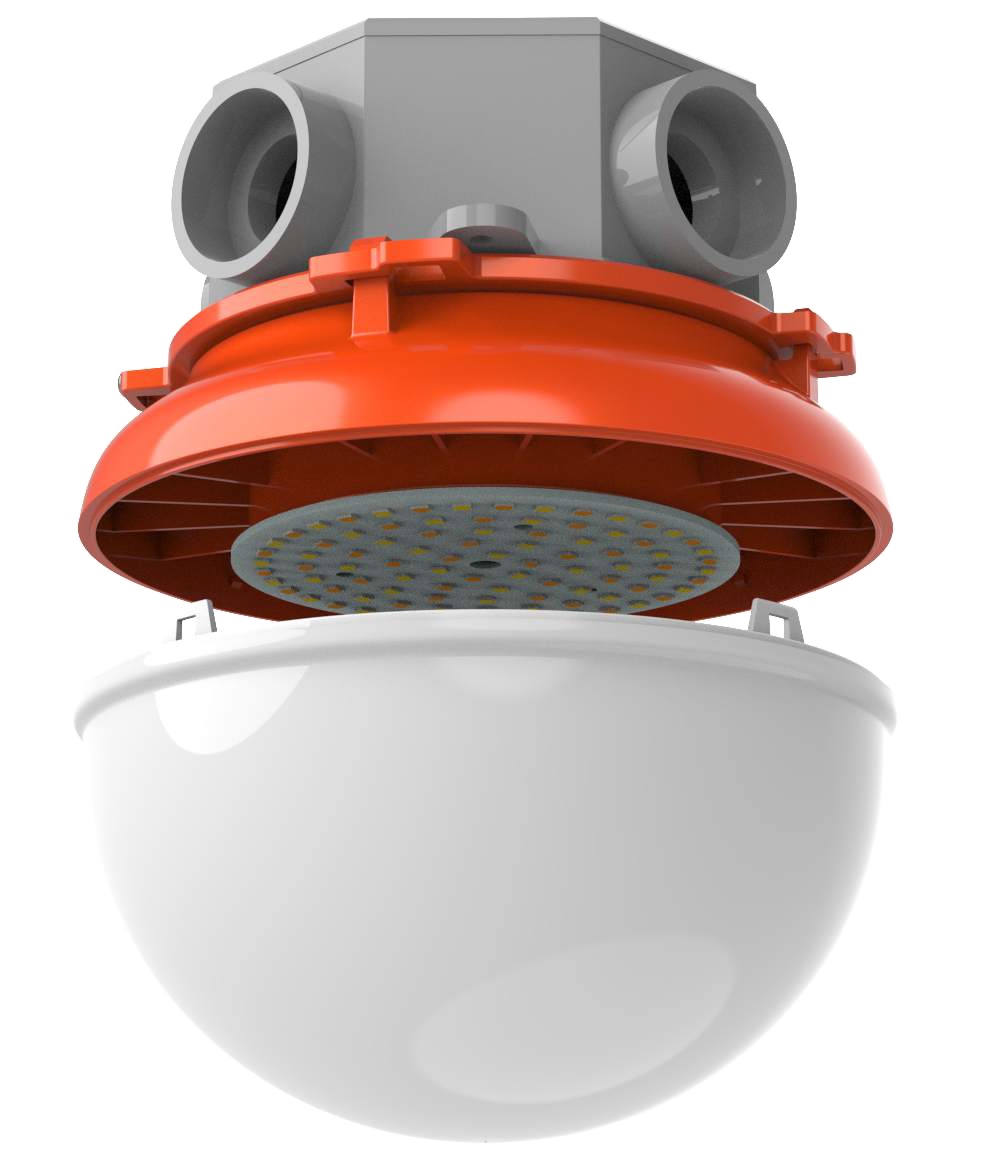

| Structure | The Orbis ceiling light is designed with a 100% aluminum heat sink, which ensures excellent heat dissipation. Additionally, it has a premium PC cover that is ammonia and shock resistant. |
| Dimensions | 116.4mm, Ø 151.9mm / 595g |

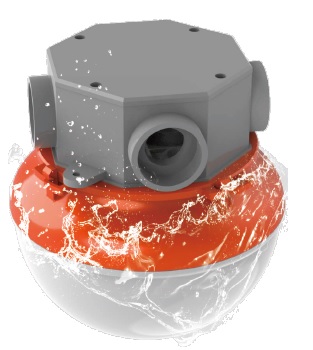

| Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
| LED diode brand | SMD2835 |
| Consumption | 15W / 20W |
| Light power | 1875lm / 2500 lm |
| Luminous efficiency | 125 lumens/watt |
| Dimmable | 0.2% to 100% |
| Color T° | 3000K, 5000K, 6500K |
| Color rendering index | ≥80 |
| Optical | Frosted |
| Beam angle | 150° |
| % flicker of non-visible | 4% |
| IP water protection index | IP 67 |
| IK impact protection class | IK 10 |
| Power factor | 0.99 |
| Maximum ambient T° | -20°c / +40°c |
| Supply voltage / Frequency | 85/145V / 175/285V (on request) / 50/60Hz |
| Lifetime / Warranty | ≥50 000h / 5 years |
| Certifications |  |
