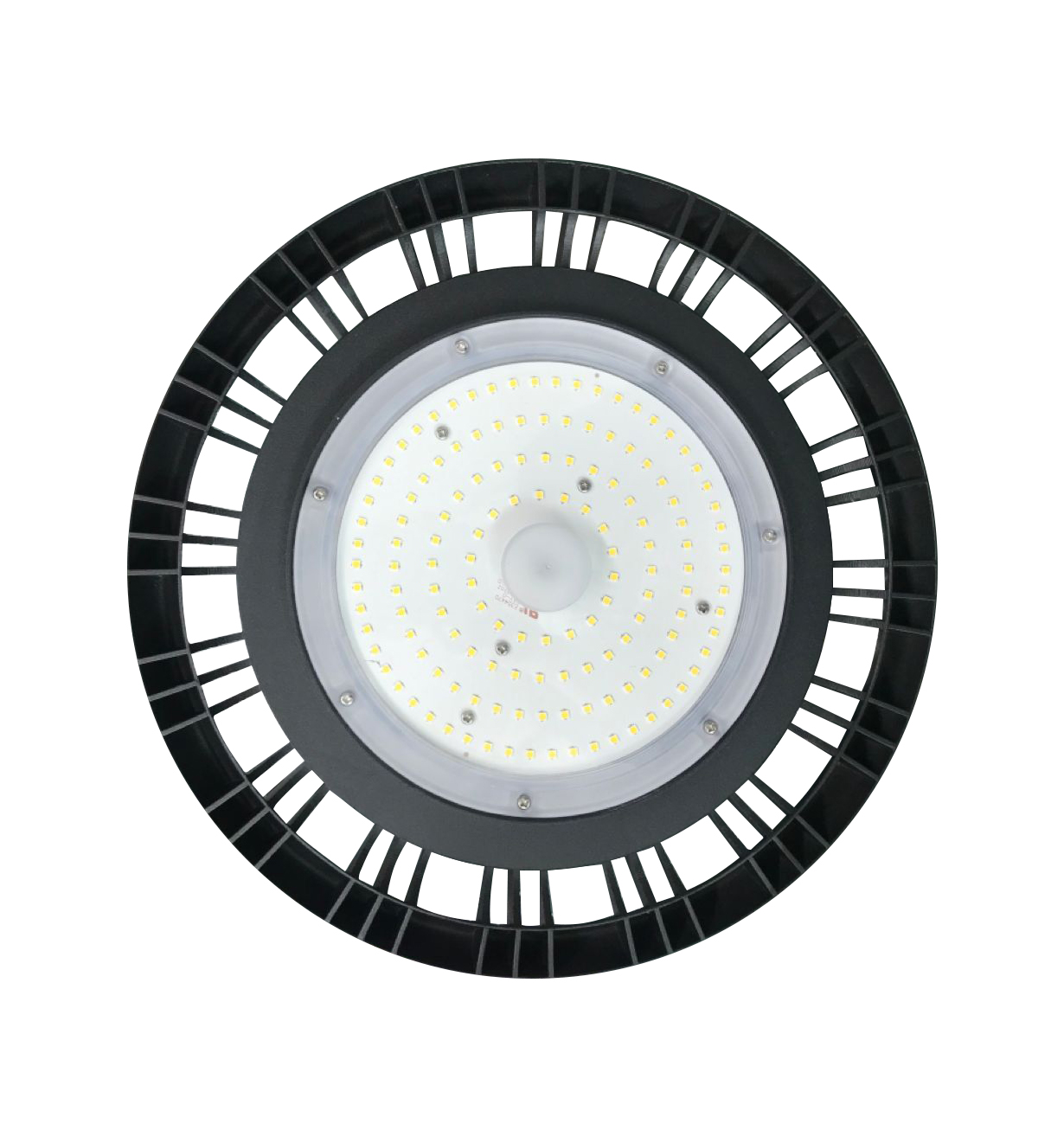

HB/RD Series
An IP65 waterproof fixture with Philips brand LED plates for agricultural, commercial, warehouse and industrial buildings.
It will allow you to achieve considerable savings in both energy consumption and maintenance costs.
100W
150W
200W
100W
Product code | HB/RD100W100/277V | HB/RD100W100/347V |
Designation | HighBay LED Round Suspension |
Structure | High pressure dies cast aluminum housing with high efficiency heat dissipation. Uniform and soft light. Fixing: stainless steel eyelet |
Dimensions | Ø 300mm for 2.1 kg |
Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
LED diode brand | Philips |
Consumption | 100W |
Light power | 16 000 lm |
Luminous efficiency | 160 lumens/watt |
Dimmable | Dimmable |
Color T° | 5000K |
Color rendering index | ≥80 |
Optical | Clear |
Beam angle | 120° |
% flicker of non-visible | 4% |
IP water protection index | IP 65 |
IK impact protection class | IK 08 |
Power factor | >0.95 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -40°c / +50°c |
Supply voltage / Frequency | 100/277V, 100/347V / 50/60Hz |
Lifetime / Warranty | ≥ 100 000 h / 5 years |
Certifications |
150W
Product code | HB/RD150W100/277V | HB/RD150W100/347V |
Designation | HighBay LED Round Suspension |
Structure | High pressure dies cast aluminum housing with high efficiency heat dissipation. Uniform and soft light. Fixing: stainless steel eyelet |
Dimensions | Ø 330mm for 2.5 kg |
Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
LED diode brand | Philips |
Consumption | 150W |
Light power | 24 000 lm |
Luminous efficiency | 160 lumens/watt |
Dimmable | Dimmable |
Color T° | 5000K |
Color rendering index | ≥80 |
Optical | Clear |
Beam angle | 120° |
% flicker of non-visible | 4% |
IP water protection index | IP 65 |
IK impact protection class | IK 08 |
Power factor | >0.95 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -40°c / +50°c |
Supply voltage / Frequency | 100/277V, 100/347V / 50/60Hz |
Lifetime / Warranty | ≥ 100 000 h / 5 years |
Certifications |
200W
Product code | HB/RD200W100/277V | HB/RD200W100/347V |
Designation | HighBay LED Round Suspension |
Structure | High pressure dies cast aluminum housing with high efficiency heat dissipation. Uniform and soft light. Fixing: stainless steel eyelet |
Dimensions | Ø de 390mm pour 3.5 kg |
Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
LED diode brand | Philips |
Consumption | 200W |
Light power | 32 000 lm |
Luminous efficiency | 160 lumens/watt |
Dimmable | Dimmable |
Color T° | 5000K |
Color rendering index | ≥80 |
Optical | Clear |
Beam angle | 120° |
% flicker of non-visible | 4% |
IP water protection index | IP 65 |
IK impact protection class | IK 08 |
Power factor | >0.95 |
Total harmonic distortion (THD) | ≤ 20% |
Maximum ambient T° | -40°c / +50°c |
Supply voltage / Frequency | 100/277V, 100/347V / 50/60Hz |
Lifetime / Warranty | ≥ 100 000 h / 5 years |
Certifications |
