HB67/420LED100/277V
HB67/620LED100/277V
High quality 4 foot High Bay fixture.
It is IP 67 waterproof conception makes it ideal for tough environments and high ceilings in agricultural, commercial and industrial buildings.
HB67/420LED100/277V | |
| Designation | IP67 waterproof fixture with four (4) 20W LED tubes with high lumen |
| Structure | Reinforced fiberglass housing, steel gear tray, polycarbonate or acrylic diffuser, stainless steel clips |
| Dimensions | 4’ | 50 x 14 x 5 7/8 |
| Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
| LED diode brand | Philips |
| Consumption | 80W |
| Light power | 11 520 lm |
| Luminous efficiency | 160 lumens/watt |
| Dimmable | No |
| Color T° | 5000K, 6000K |
| Color rendering index | ≥85 |
| Optical | Clear |
| Beam angle | 120° |
| % flicker of non-visible light | 4% |
| IP water protection index | IP67 |
| IK impact protection class | IK08 |
| Power factor | 0.99 |
| Total harmonic distortion (THD) | <15% |
| Maximum ambient T° | -45°c / +45°c |
| Supply voltage / Frequency | 100/277V / 50/60Hz |
| Lifetime / Warranty | ≥ 80 000 h / 5 years |
| Certifications |  |
HB67/620LED100/277V | |

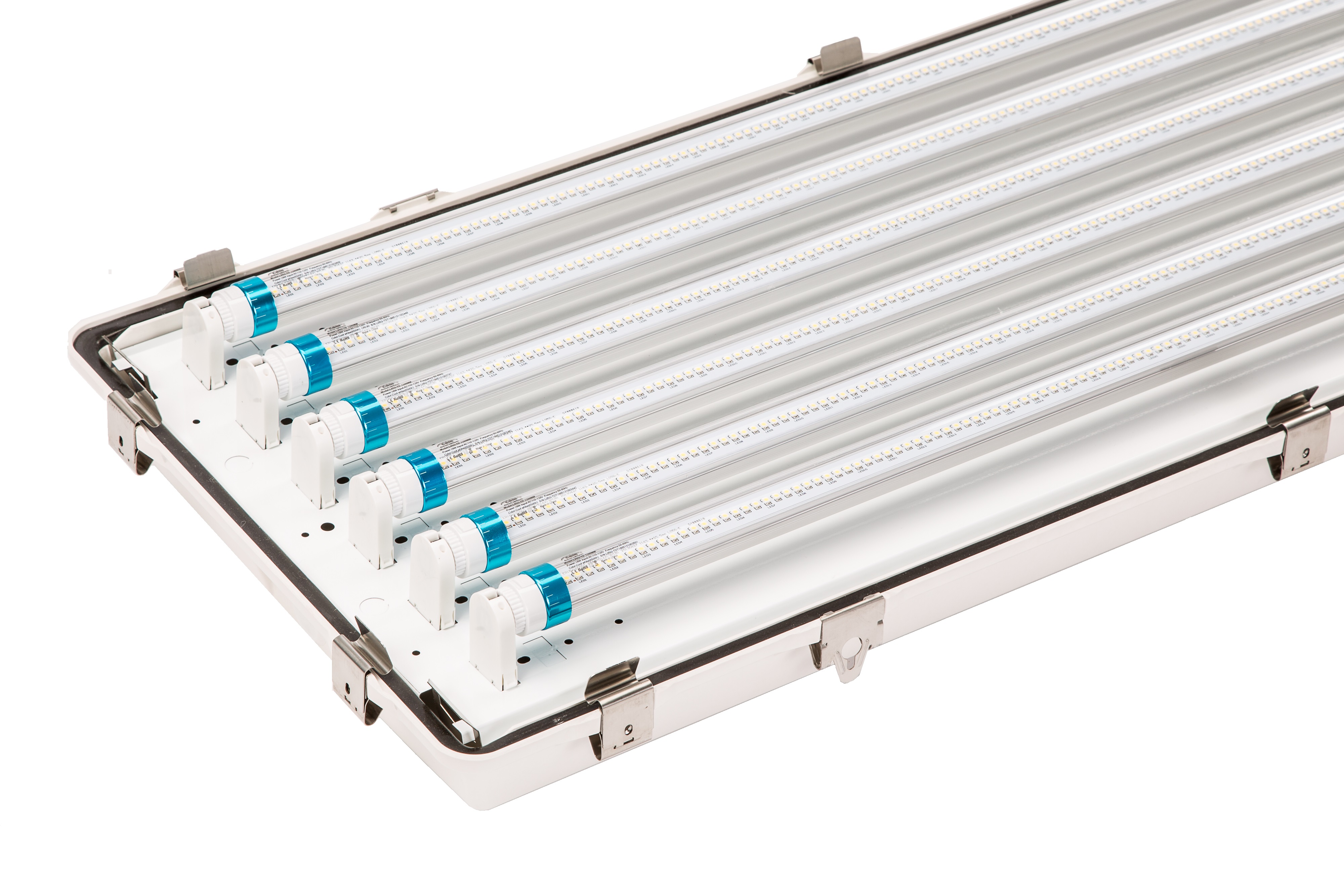

| Designation | IP67 waterproof fixture with six (6) 20W LED tubes with high lumen |
| Structure | Reinforced fiberglass housing, steel gear tray, polycarbonate or acrylic diffuser, stainless steel clips |
| Dimensions | 4’ | 50 x 14 x 5 7/8 |
| Washable | with up to 1500 PSI steam pressure at a temperature up to 200° F |
| LED diode brand | Philips |
| Consumption | 120W |
| Light power | 17 280 lm |
| Luminous efficiency | 160 lumens/watt |
| Dimmable | No |
| Color T° | 5000K, 6000K |
| Color rendering index | ≥85 |
| Optical | Clear |
| Beam angle | 120° |
| % flicker of non-visible light | 4% |
| IP water protection index | IP67 |
| IK impact protection class | IK08 |
| Power factor | 0.99 |
| Total harmonic distortion (THD) | <15% |
| Maximum ambient T° | -45°c / +45°c |
| Supply voltage / Frequency | 100/277V / 50/60Hz |
| Lifetime / Warranty | ≥ 80 000 h / 5 years |
| Certifications | |
