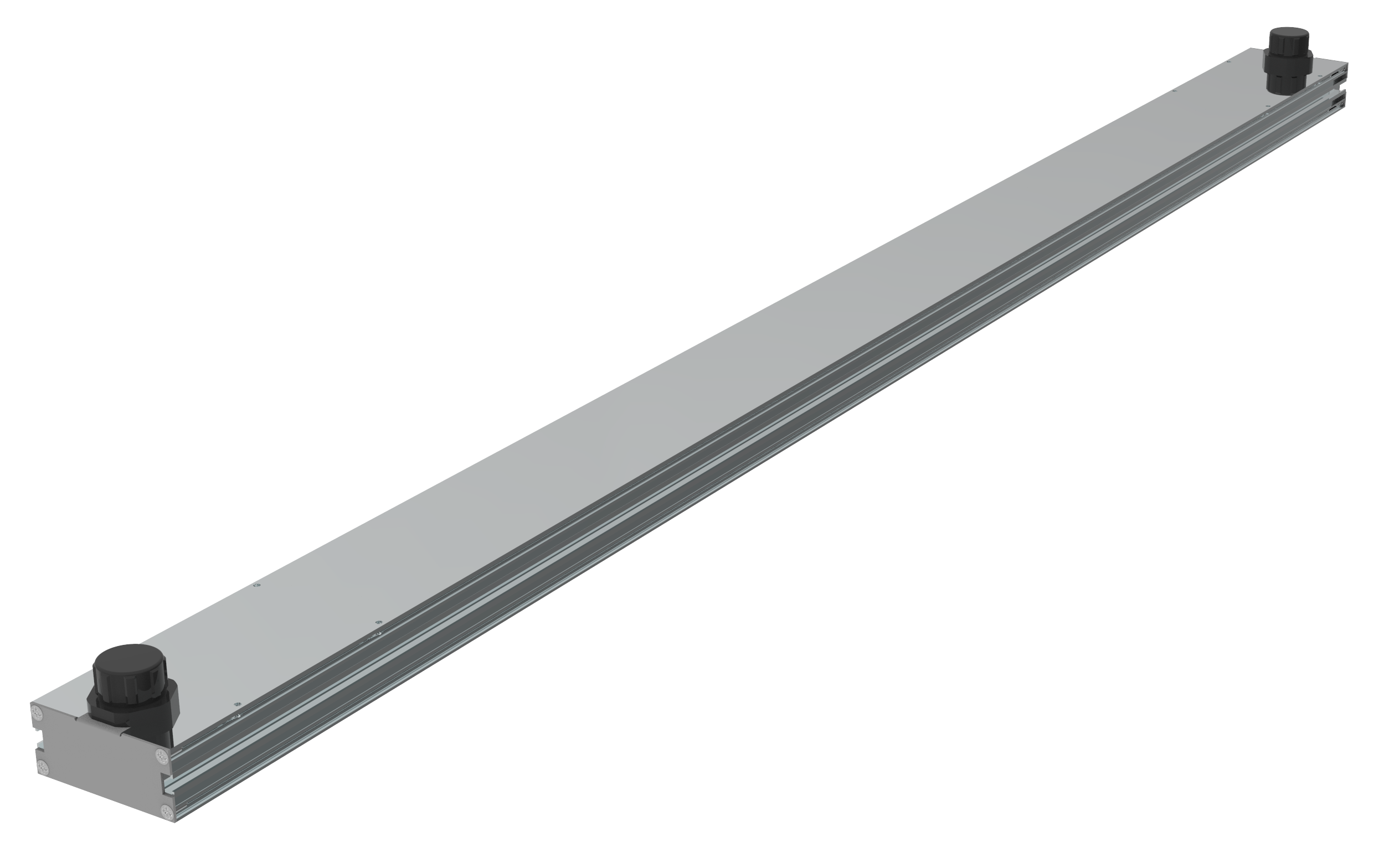

HRT Series
Waterproof LED grow bar with high photon efficiency high brightness chip. All slots receive the same PPFD.
Lighting is evenly distributed in all directions + uniform coverage + larger footprint + high efficiency. UV + 3000K+6500k White+660nm Red + IR 730nm ~ True Full Spectrum.
All chips in parallel. The broken chip never affects other chips.
Applications
Indoor / Greenhouse / Hydroponics / Horticulture / Garden / Grow tent
| Product code |
HRT400W100/277V5C |
HRT600W100/277V5C |
HRT800W100/277V5C |
HRT1000W100/277V5C |
| Designation |
Waterproof LED grow bar light with high brightness chip which has high photon efficiency. All locations get the same PPFD. Lighting is evenly distributed in all directions + uniform coverage + larger footprint + high efficiency. UV +3000k+6500k White+660nm Red + IR 730nm~True Full Spectrum. All chips in parallel. The broken chip never affects other chips. |
|||
| Structure |
High purity 6063 aluminum, excellent heat dissipation |
|||
| Dimensions |
1200mm (4′) x 1200mm (4′) x 80mm (3.15″) |
|||
| Standard |
4PCS Bar Light + 1x Aluminum Holding |
6PCS Bar Light + 1x Aluminum Holding |
8PCS Bar Light + 1x Aluminum Holding |
10PCS Bar Light + 1x Aluminum Holding |
| Led type |
UV+3000K+6500K+660nm+730nm |
|||
| LED Qty |
960pcs |
1440pcs |
1920pcs |
2200pcs |
| PPF |
1120umol/s |
1680umol/s |
2240umol/s |
2800umol/s |
| EQ |
220-223 lm/w | 2.8umol/J |
|||
| Dimmable |
Dimmable: 0-10v Auto/App/Wi-Fi/Computer Remote Control Available |
|||
| Light Area |
1200*1200m(4ft*4ft) |
|||
| Angle |
120° |
|||
| Driver |
UL Driver Inventronics and Meanwell |
|||
| Input voltage |
AC 85V/265V |
|||
| Output voltage |
50V/70V |
|||
| Maximum ambient T° |
-20°c / +50°c |
|||
| Frequency |
50/60Hz |
|||
| Lifetime |
80,000 hours |
|||
| Warranty |
5 years |
|||
| Certifications |  |
|||
